Vastav TMT- Products

Our Products

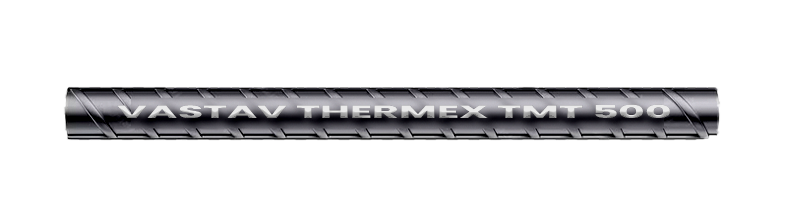

Vastav Thermax TMT 500 Variants
Section in mm ISI Standards Nominal Weight Kg. Per Mtr Tolerance Limit as per ISI in Kg. Per ltr Vastav TMT Nominal Weight Kg. Per Mtr Tolerance limit as per Vastav TMT in Kg. Per Mtr No of pieces in Bundle Lenght in Mts per MT

8

0.395

0.367 - 0.423

0.375

0.370 - 0.385

 12 2531

10

0.617

0.574 - 0.660

0.575

0.575 - 0.585

 8 1620

12

0.888

0.844 - 0.932

0.855

0.845 - 0.860

 5 1126

16

1.58

1.500 - 1.659

1.52

1.510 - 1.535

 3 633

20

2.47

2.395 - 2.544

2.41

2.400 - 2.425

 2 405

25

3.85

3.730 - 3.965

3.78

3.730 - 3.785

 1 280

28

4.83

4.685 - 4.975

4.75

4.700 - 4.750

 1 207

32

6.31

6.121 - 6.499

6.235

6.190 - 6.250

 1 159

25mm TMT Bars

25mm
Diameter:

Size: 25 mm (millimeters)

Weight:
      Weight per meter: Approximately 3.85 kg/m
      Weight per 12-meter length: Approximately 46.2 kg (since a standard TMT bar length is 12 meters)
Grade:

Common Grades:

  • Fe 415: Yield strength of 415 N/mm²
  • Fe 500: Yield strength of 500 N/mm²
  • Fe 550: Yield strength of 550 N/mm²
  • Fe 600: Yield strength of 600 N/mm²

The grade indicates the bar's strength, with higher numbers representing stronger bars.

Uses:

Construction Applications:

  • Used in heavy load-bearing structures, such as large-scale buildings, bridges, and other infrastructural projects.
  • Ideal for beams, columns, slabs, and other structural elements where high strength and durability are required.
Properties:
  • High Tensile Strength: The 25 mm TMT bar has high tensile strength, making it resistant to breaking or deforming under heavy loads.
  • Ductility: It offers good elongation, allowing the bar to bend or stretch without breaking, which is crucial in earthquake-prone areas.
  • Corrosion Resistance: TMT bars have a protective layer that reduces the risk of rust and corrosion, especially in humid environments.
  • Weldability: TMT bars can be easily welded without losing their strength, making them versatile in various construction methods.
Manufacturing Process:
  • Thermo-Mechanical Treatment: The bars undergo a process where they are heated, rolled, and then rapidly cooled, which imparts their high strength and other beneficial properties.
Standards:
  • BIS Standards: The TMT bars conform to Indian Standards like IS 1786:2008, which ensures the quality and strength of the bars.
Pricing:
  • Cost: The price of 25 mm TMT bars can vary depending on the grade, brand, and market conditions. Typically, prices are calculated per kilogram or per ton.
Availability:
  • Suppliers: Available through various steel manufacturers and suppliers, both online and offline. They are widely used and can be sourced easily for construction projects.
Advantages:
  • Safety and Durability: Provides enhanced safety due to its high strength and resistance to seismic activity.
  • Cost-Effective: Although larger in size, the strength and durability of 25 mm TMT bars make them a cost-effective choice for large-scale projects.

8mm TMT Bars

8mm
Diameter:

Size: 8 mm (millimeters)

Weight:
      Weight per meter: Approximately 0.40 kg/m
      Weight per 12-meter length: Approximately 4.8 kg (since a standard TMT bar length is 12 meters)
Grade:

Common Grades:

  • Fe 415: Yield strength of 415 N/mm²
  • Fe 500: Yield strength of 500 N/mm²
  • Fe 550: Yield strength of 550 N/mm²
  • Fe 600: Yield strength of 600 N/mm²

The grade indicates the bar's strength, with higher numbers representing stronger bars.

Uses:

Construction Applications:

  • Commonly used in smaller scale construction projects, such as residential buildings and minor infrastructure.
  • Ideal for use in concrete reinforcement for walls, slabs, and smaller structural components.
Properties:
  • High Tensile Strength: The 8 mm TMT bar offers sufficient tensile strength for smaller construction needs.
  • Ductility: Provides flexibility and resistance to breaking, making it suitable for various small-scale applications.
  • Corrosion Resistance: Equipped with a protective layer that helps reduce rust and corrosion.
  • Weldability: Can be easily welded without compromising its strength.
Manufacturing Process:
  • Thermo-Mechanical Treatment: Similar to larger bars, the 8 mm TMT bars undergo a heating, rolling, and rapid cooling process to enhance their properties.
Standards:
  • BIS Standards: Conforms to Indian Standards such as IS 1786:2008, ensuring quality and performance.
Pricing:
  • Cost: Pricing varies based on grade, brand, and market conditions. Typically priced per kilogram or per ton.
Availability:
  • Suppliers: Widely available through steel manufacturers and suppliers, both online and offline.
Advantages:
  • Safety and Durability: Provides reliable performance in small to medium-scale projects.
  • Cost-Effective: A cost-efficient choice for projects requiring smaller diameter bars.

10mm TMT Bars

10mm
Diameter:

Size: 10 mm (millimeters)

Weight:
      Weight per meter: Approximately 0.79 kg/m
      Weight per 12-meter length: Approximately 9.48 kg (since a standard TMT bar length is 12 meters)
Grade:

Common Grades:

  • Fe 415: Yield strength of 415 N/mm²
  • Fe 500: Yield strength of 500 N/mm²
  • Fe 550: Yield strength of 550 N/mm²
  • Fe 600: Yield strength of 600 N/mm²

The grade indicates the bar's strength, with higher numbers representing stronger bars.

Uses:

Construction Applications:

  • Used in medium-sized construction projects, such as residential buildings and smaller commercial structures.
  • Suitable for reinforcement in walls, slabs, and columns where moderate strength is required.
Properties:
  • High Tensile Strength: The 10 mm TMT bar provides good tensile strength, suitable for medium-strength applications.
  • Ductility: Offers flexibility and resistance to breaking, useful in areas requiring moderate earthquake resistance.
  • Corrosion Resistance: Features a protective layer to reduce rust and corrosion, particularly in humid environments.
  • Weldability: Easily welded without compromising strength, suitable for various construction methods.
Manufacturing Process:
  • Thermo-Mechanical Treatment: The bars are subjected to heating, rolling, and rapid cooling processes to enhance their strength and durability.
Standards:
  • BIS Standards: Conforms to Indian Standards such as IS 1786:2008, ensuring quality and reliability.
Pricing:
  • Cost: Prices vary based on grade, brand, and market conditions. Typically calculated per kilogram or per ton.
Availability:
  • Suppliers: Widely available through various steel manufacturers and suppliers, both online and offline.
Advantages:
  • Safety and Durability: Offers reliable performance and safety for medium-strength applications.
  • Cost-Effective: Provides a balance between cost and strength for various construction projects.
